检测原理：红外相关轮滤波

进气方式：连续

测量量程：见表格(量程可定制)

检测流量：0.8L/min±10%

工作电压：DC24V±0.5V

驱动电流：12V/1A  220V/1A

示值误差：≤±2%F.S

响应时间(T90):≤60S

分  辨  率：0 . 01ppm (根据测量范围)

重  复  性：≤±1%F.S

线性误差：≤±2%F.S

零点漂移：≤±2%F.S/24h

量程漂移：≤±2%F.S/24h

使用温度： -10~40℃

环境温度： -10℃~+40℃

环境湿度：95%RH, 无结露

产品功耗：G150L155W(主板功率7W+加热部分功率148w)

                 G150155W (主板功率7W+加热部分功率33w)

工作电源：传感器电源 DC12V, 气体池加热：220VAC±10%,50HZ

工作环境：无明显震动或冲击场合，通风良好

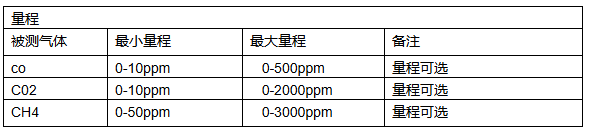

量程
被测气体	最小量程	最大量程	备注
co	0-10ppm	0-500ppm	量程可选
C02	0-10ppm	0-2000ppm	量程可选
CH4	0-50ppm	0-3000ppm	量程可选

1.采用双通道红外探测器，对被测气体吸收信号进行补偿，降低温度等干扰因素对检测结果准确度的影响，气体 检测准确度更高，无需频繁校准；

2.采用长光程气体吸收池、实现低浓度气体检测；

3.自主研发的先进分析算法控制温度对传感器的影响，传感器温漂小；

4.整体结构使用模块化设计，可维护性高，可靠性高；

5.搭载高性能光源和进口探测器，传感器使用寿命长；

6.RS232、RS485、4-20mA、TTL可选输出。

广泛应用于石油天然气、安全监测环保监测、污染源烟气监测工业过程、石油炼化工业过程、煤化工领域。
